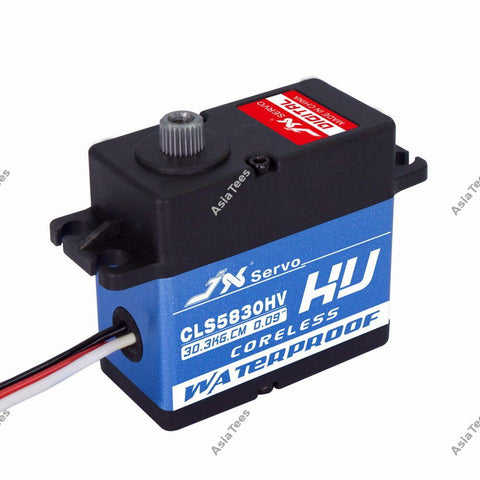

JX Servo Waterproof Aluminum Case HV Coreless Digital Servo 30 Kg/0.09 Sec @8.4V for Crawler & Buggy

JX Servo Waterproof Aluminum Case HV Coreless Digital Servo 30 Kg/0.09 Sec @8.4V for Crawler & Buggy

  • $44.00


PRODUCT INFORMATION:
  • Feature:

    • CNC metal on the cover in the shell
    • High Voltage Coreless Digital Servo

    Specifications:

    • Dead band: 1us
    • Steel internal gears
    • Working frequence: 1520μs / 330hz
    • Motor: Coreless
    • Operating Speed 6.0V: 0.11 sec/60°
    • Operating Speed 8.4V: 0.09 sec/60°
    • Stall Torque 6.0V: 24.7 kg.cm (343 oz-in)
    • Stall Torque 8.4V: 30.3 kg.cm (420 oz-in)
    • Dimensions: 40.5x20.2x38mm
    • Weight: 58g
    • Bearing: 2BB
    • Spline: 25T

    Spares:

  • Product total weight: 104.00 grams
  • Factory description: JX Servo CLS5830HV Waterproof Aluminum Case HV Coreless Digital Steel Gear Servo 30 Kg/0.09 Sec @8.4V for Crawler & Buggy
  • Manufactured by JX Servo
  • Manufacturer number: JX/CLS5830HV
